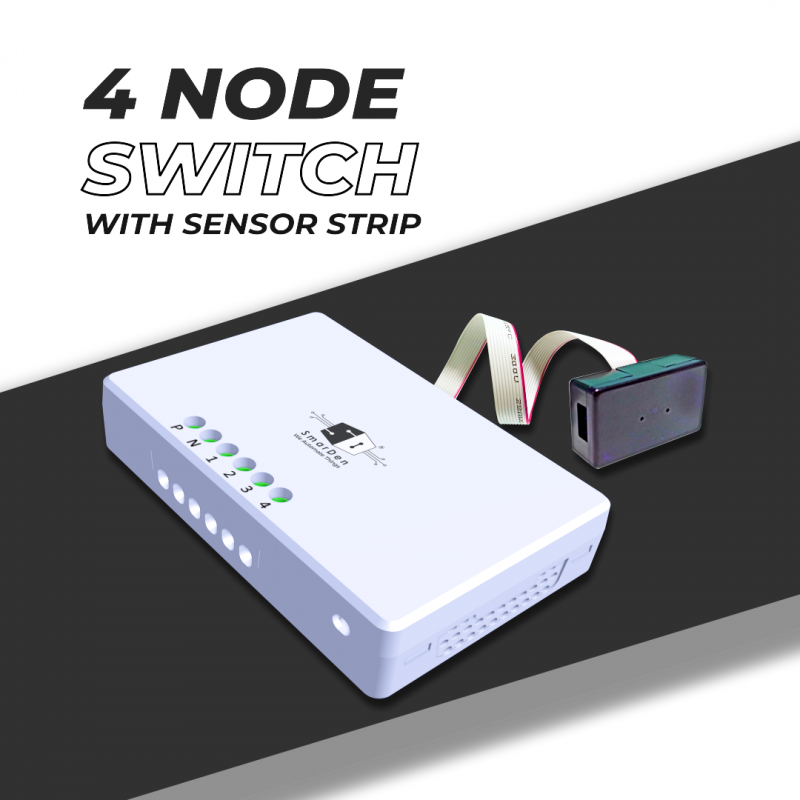

Blaze + 4S Switch Controller With Sensor Strip
The SmarDen Blaze +4S Smart Switch controller is our retrofit solution to convert a normal switchboard with 4 switches to a smart switchboard. The Blaze +4S Smart switch controller fits behind the existing switchboard and converts it into a smart switchboard. With the Blaze +4S you can control 4 individual switches directly from the SmarDen mobile application.
(Smart Remote, Control All Your Appliances from Anywhere)
- Control switch via app or manually
- Goes behind the switchboard
- Compatible With Both Google Assistant And Alexa
Technical Specifications:
| Power Input: | 20V4 AC, 50/60Hz. |
|---|---|
| Incandescent lamp/Resistive Load Per Channel: | 800W |
| LED Load: | 120 W or 6 Nos(whichever is higher) on each channel. |
| Inductive Load: | 400W |
| Typical standby power: | < 1 W. |
| Operating distance from Wi-Fi router: | up to 30 meters* (depending upon router placement) |
| No of Channels: | 4 (3 lights + 1 Fan) |
| Relay Channels: | 3 |
| Fan Dimming Channels (Capacitor Dimming): | 1 |
| Dimensions: | 133x55x24 mm |
| Communication Wi-Fi: | Connects to 2.4 GHz, Wi-Fi 802.11 b/g/n |
| Power measurement accuracy: | ±5%. |
| Operating temperature: | 0℃ to 70℃ |
| Energy Monitoring: | Yes |
| IR Blaster frequency range: | 20-60 kHz |
| Sensor Strip: | with Temperature & humidity Sensor, Light Sensor, universal IR remote |
Product Description
You can control IR remote-based appliances like TV, AC, Set-top box, Home Theater Systems, AV receivers, Soundbars etc. from the SmarDen mobile App. You’ll also get the temperature and humidity readings for that particular room. The products are designed with proper industrial standards and the power supply used in the products is highly compatible with Indian Standards. The Blaze + 4S works independently without any hub and connects to the WiFi directly. The user can control the device from their smartphone with the SmarDen Mobile Application which is available for both Android and iOS devices. It also comes with a Sensor Strip which sits on the top of the switchboard and it has an IR blaster, Temperature and a Humidity sensor inbuilt. The Sensor Strip will help you in controlling all the IR based devices present in that room directly from the SmarDen Mobile App. 4 nodes in this module are for normal switching and the other node is for dimmer switches.
